Дуслын шахуурга/Hepho-HF710-C/
0₮
Хүргэлттэй
| Item | Technical Parameter |
| IV Sets | Standard single use IV sets(20 and 60d/ml, with diameter 3.4~4.5mm) |
| Flow Rate Range | 1.0ml/h with 0.1ml/h; 100-1200ml/h with 1ml/h |
| Flow Rate Increment | 1.0-100ml/h with 0.1ml/h; 100-1200ml/h with 1ml/h |
| Flow Rate Deviation | <±5%(after calibration) |
| VTBI | 0.1~9999ml |
| Infused Volume | 0~999ml |
| Time Setting | 1 min to 99h59min |
| Purge Rate | 600ml/h, displaying purge volume |
| KVO | 1ml/h~5ml/h, adjustable |

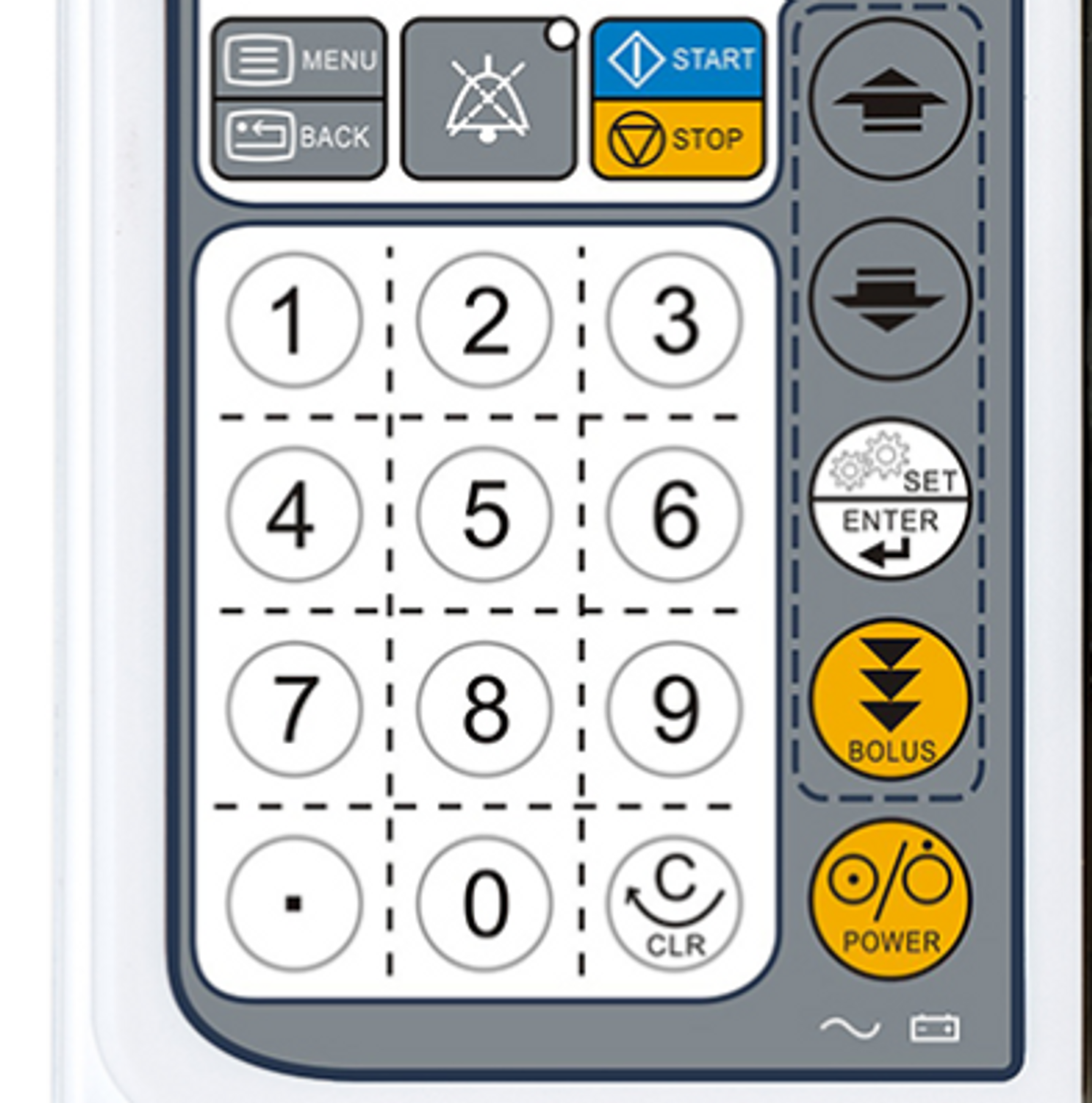

| Keypad | Numeric Keypad, user friendly |
| BOLUS Mode | Available for Bolus mode, flow rate adjustable |
| Night Mode | Night mode, No operation for 5mins, LCD brightness lower automatically |
| Occlusion Pressure Detection | Occlusion Pressure Sensor, detection range: 40-140Kpa, 10 levels adjustable, auto pressure release function |
| Air-in-line Detection | Air bubble detected by ultrasonic with 10 setting, 50~300μL |
| Alarm &Volume | 10 settings |
| Anti-reverse Function | Anti-reverse function on motor to prevent upstream |
| IV Set Management | Open System, Can accept all kinds of IV Set after calibration |
| Self-Testing | Self-Testing when start up and during infusing |
| Audio and Visual Alarms | Air-in-line, Door open, occlusion, parameter, IV Ste not calibrated, infusion finished, No operation, Leakage, battery low, Pump error. Motor reverse, AC power lost, etc. |

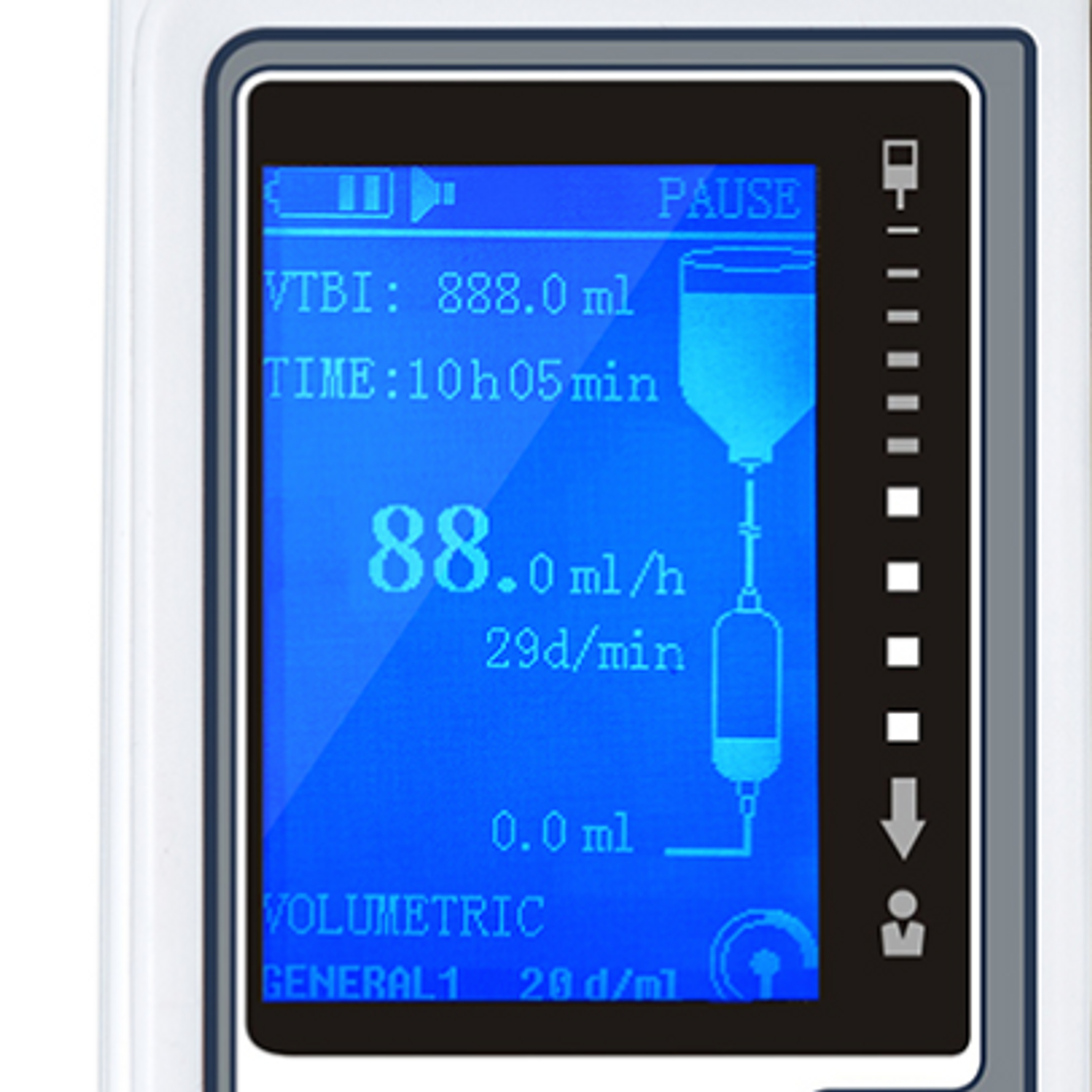

| Display | 3.5” Brightness LCD |
| AC power | AC:100V~240V, 50Hz/60Hz,≤25VA |
| Battery | Rechargeable Lithium battery: DC11.1V, 3000mAh, life:≥10 hours remaining battery displayed |
| Operation | Temperature: 5℃~40℃, Relative humidity:20%~90%, Atmospheric pressure:70~106Kpa |
| Transportation and Storage | Temperature: 20℃~55℃, Relative humidity:10%~90%, Atmospheric pressure:70~106Kpa |
| Classification | Class I, CF, IP*3 |
| Dimension | 150mm*10mm*210mm |
| Weight | 1.7KG |
